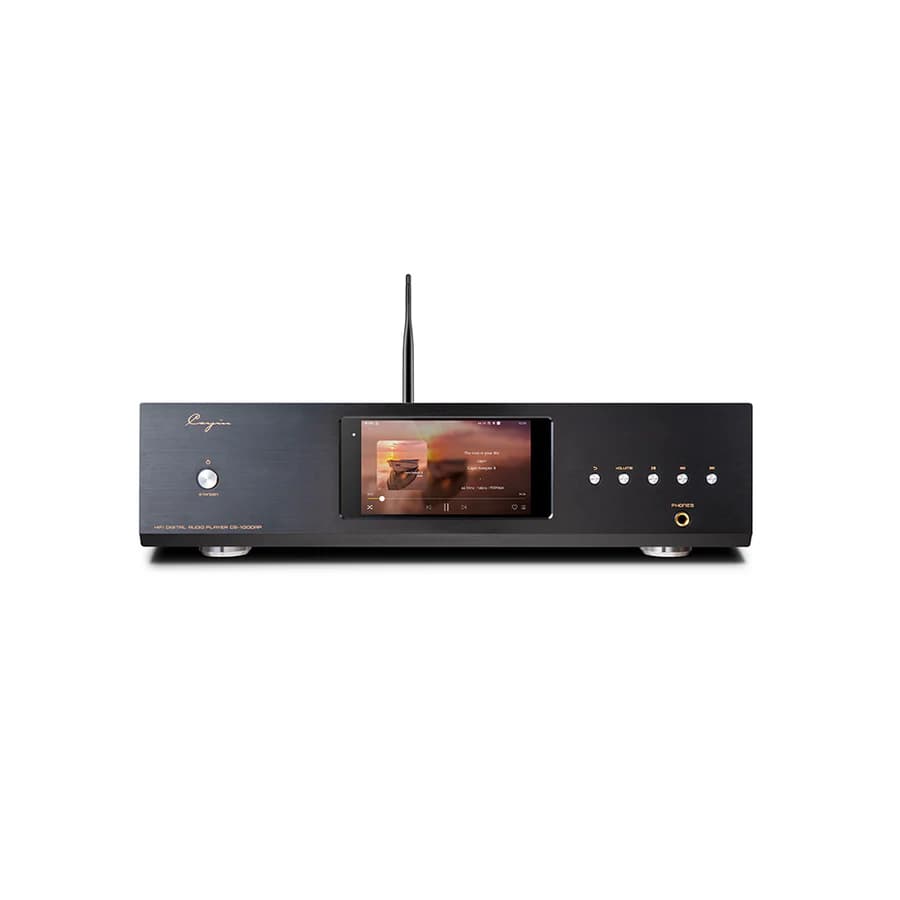

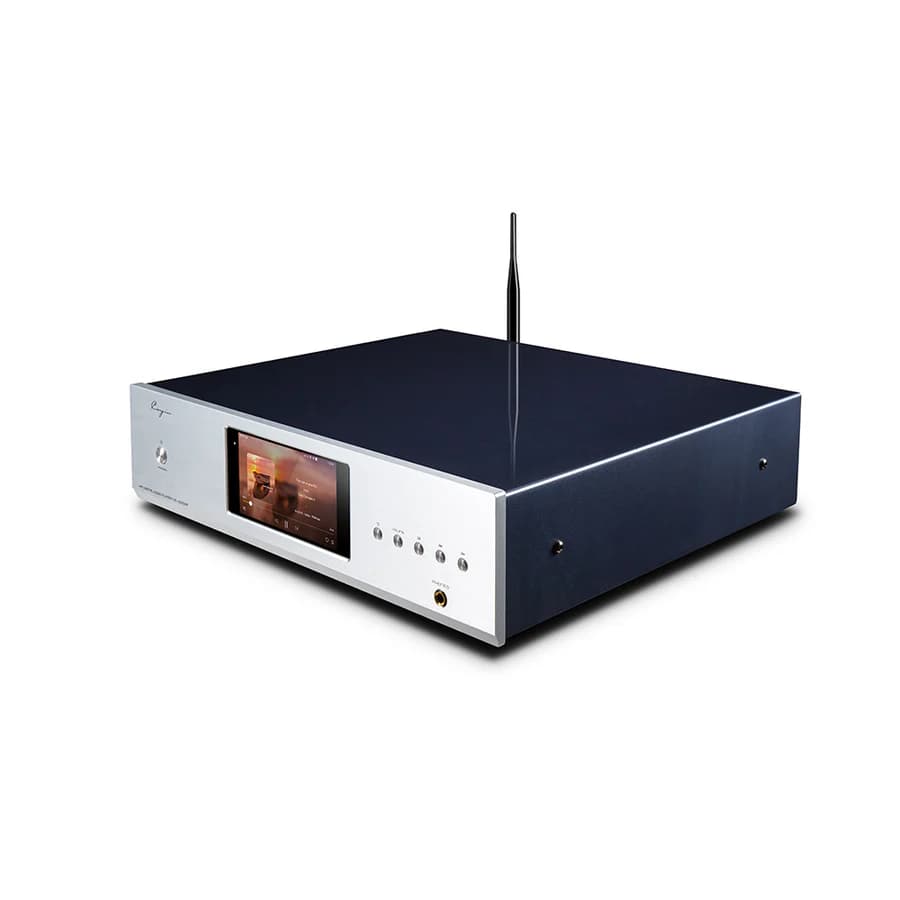

Cayin CS-100DAP Digital-Streamer
Digital audio player for desktop use that plays music files from hard drives, sticks and SD cards.
Imagine being able to stream your favorite music on a high-end audio player that can do it all! Our new Cayin CS-100DAP is based on Android 9.0 and offers extensive equipment that will convince you.
How about a 5-inch Full HD TFT display that shows every detail with pinpoint clarity? Or a USB DAC output supporting any USB-A socket, plus I2S (HDMI) and S/PDIF (AES/EBU, BNC, RCA, OPTICAL) multiple digital audio outputs?
But that's not all! The CS-100DAP also offers RCA single-ended and XLR balanced analog outputs, a 6.35mm headphone output, two USB3.0 Type-A USB ports for playing music from USB hard drives or card readers and an SD -Card slot for music playback or firmware upgrades.
And the best is yet to come: In addition to the internal memory, the DAP also offers a hard drive dock for two standard 2.5" SATA hard drives in addition to the USB3.0 connection for connecting to computers or external hard drives. You can easily expand your extensive music collection and save it directly on the player in the highest quality.
But that is not all! The CS-100DAP can also be shared over a Wi-Fi connection and communicate with a variety of networked devices via Samba, DLNA and Airplay. And if you want to control local playback from your phone or tablet, just use HiBy Link and connect via Bluetooth or Wi-Fi.
And to make it even easier for you to enjoy your musical experience, we're including a remote control.
Of course, this audio player/streamer supports all common audio formats - including convincing tonality - and will inspire you.
Technical data:
- CPU: Snapdragon 660
- Betriebssystem: Android 9.0
- DAC: ES9028PRO
- Display: 5″ Full HD TFT display
- NettogewichtAbout 10.2KG
- Abmessungen: 420x391x117mm(BxTxH)
- Maximaler Stromverbrauch: 30W

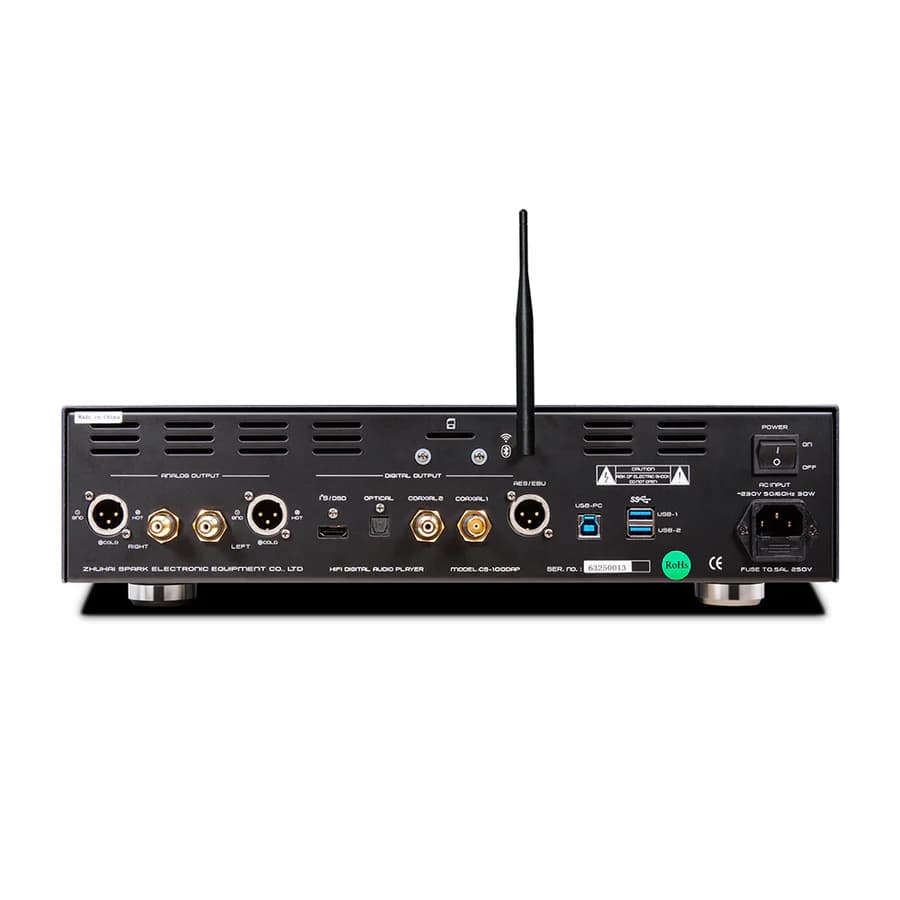

Digital Interface
USB DAC OUT
- Connector: USB Type-A
- PCM up to 32Bit/768kHz
- DSD up to DSD512
I²S/DSD
- Connector: HDMI Type-A
- PCM up to 32Bit/768kHz
- DSD up to DSD512
S/Pdif
- Connector: RCA、BNC、XLR
- PCM up to 24Bit/192kHz
- DSD up to DoP64
Optical capability
- PCM up to 24Bit/192kHz
- DSD up to DoP64
Bluetooth
- Transmit Codec : UAT(up to 192kHz)、LDAC(up to 96kHz)、 aptX、aptX HD、AAC(up to 48kHz）、SBC(up to 48kHz)
- Receive Codec (®@): UAT(up to 192kHz)、LDAC(up to 96kHz)、 AAC(up to 48kHz）、SBC(up to 48kHz)
File Format
- DSF/DFF/SACD–ISO/FLAC/AIFF/ WAV/APE/ALAC/WMA/MP3/AAC/OGG
