Cayin CS-55CD CD player
The Cayin CS-55CD is a stand-alone hybrid tube CD player developed to partner with the CS, MA and LA series integrated amplifiers. D/A conversion is accomplished by a Texas Instruments PCM5101 chipset, while the CS-55CDs analogue output stage uses a 12AU7 tube.
The CS-55CD utilizes a high-speed XMOS USB 2.0 receiving and decoding 32bit/384kHz high resolution digital signals together with high-quality audio operational amplifier circuits, with included USB input and remote.
The USB performance is further enhanced by the implementation of very precise Crystal oscillators - these 20MHz/31kHz silicon oscillators ensure that the highest possible USB performance is made available.
Specifications
- Output voltage: 2.0V ± 1.5dB
- Frequency range: 20Hz-20kHz ± 0.5dB
- THD: -60dB
- Interference voltage distance : 90dB
- Tubes: 12AU7 x 1

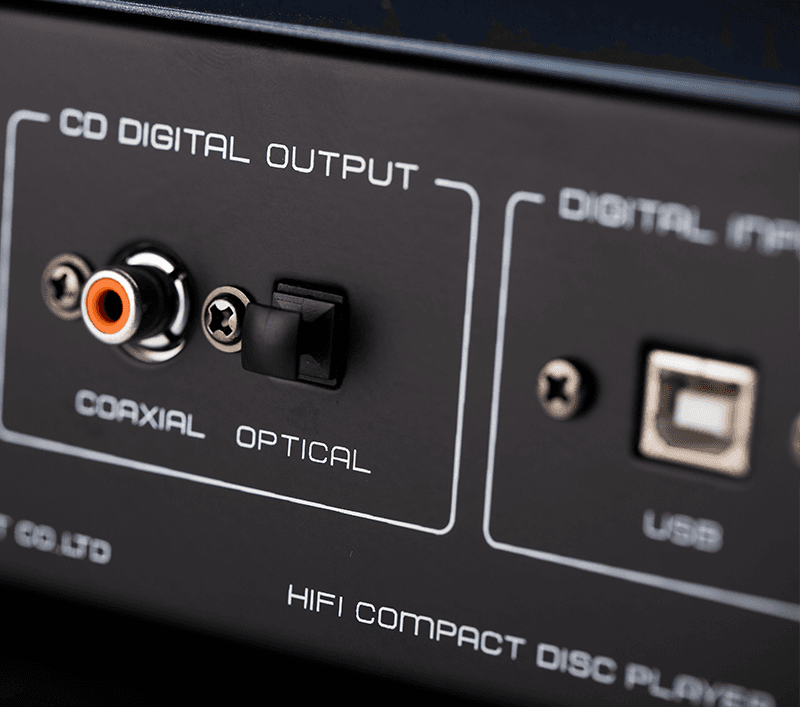

- Digital output: optical x 1, coaxial x 1
- Digital output: IEC958 standard
- USB audio input: Compatible with Audio Class 1.0 and Audio Class 2.0
- 16-32 bit
- Sampling rates: 44.1 - 384kHz
- Weight: 6kg
- Dimensions: W x H x D 360 × 325 × 90mm
- Power consumption: 20W
- Weight: 6 kg
- Equipment: System remote control compatible with Cayin CS-55A integrated amplifier
