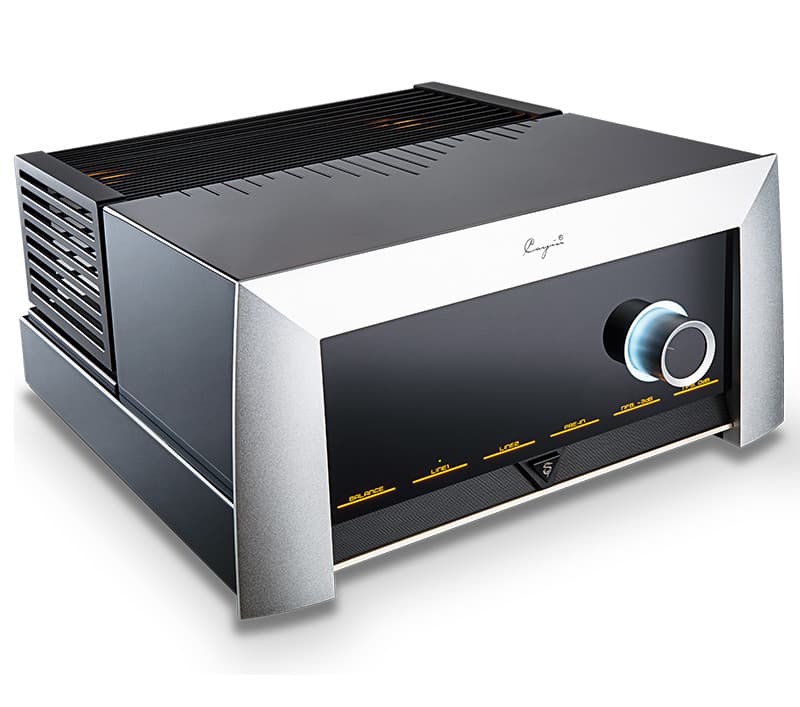

Cayin M-845i
- Fully Hand-made construction with the finest point-to-point wiring.
- Two EI output transformers with ultra-wide bandwidth are employed.
- Specially designed toroidal transformer has been implemented for the power supply topology.
- One hand picked 6SN7 has been used in the preamp stage for voltage regulation.
- Two 6SL7's have been used for voltage amplification while another two hand-matched 6SN7's have been used for the driver stage.
- Two TJ Full Music 300B with Porcelain base has been used for drive amplification.

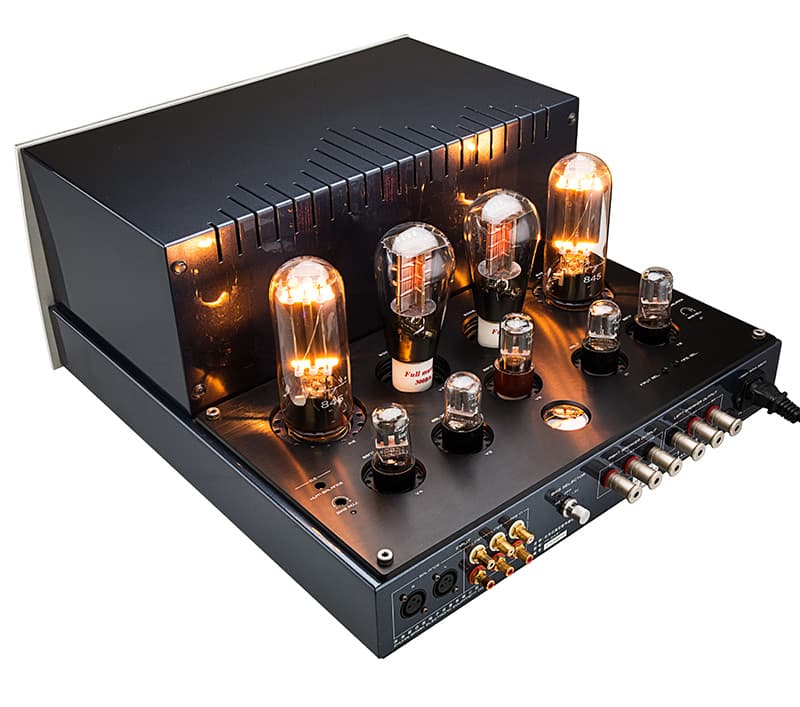

- The 845 vacuum tube has been used for Single-end Class A amplification. One for each channel.
- Switchable between different negative feedback settings. It outputs a wonderfully soft, clean, original sound if operated at -3dB NFB. Otherwise it outputs an gorgeously open, bold sound with great dynamics, but presented with a more fluid and organic flavour if operated at 0dB NFB.

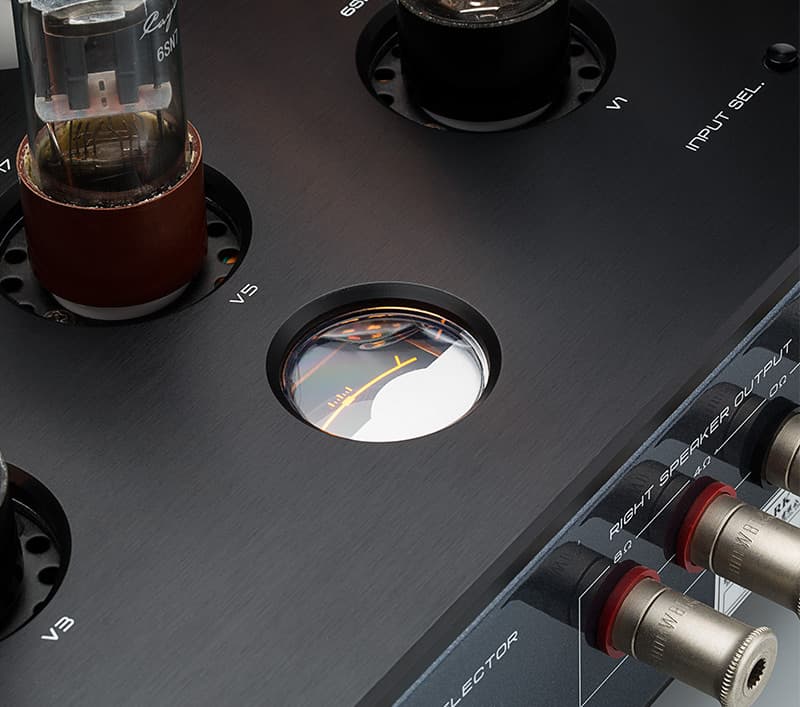

- User Bias adjustment, Hum Balance adjustment are accessible on top of the amplifier with true ampere meter.
- Remote control is providd for all functions.
- Can be used as a Power Amplifier.
- M-845i can memorise last operation of the unit once turned off.
- Output Level will attenuate automatically for the Balanced Input.
- Employs High quality Alps Volume control, and German WBT top grade Speaker terminals, USA.
- Multicap Capacitors and Japanese Takman Carbon Film Audio grade resistors have been used in the amplifier.
- Heavy gauge silver plated signal cable has been used throughout.
- Equipped with easily-installed tube cover for protection.
Technical Specifications
| Model | M-845i |
| Frequency Response | 10Hz42kHz(-3dB) |
| Supply Voltage | 220V±5% 50Hz |
| S/N Ratio | 89dB |
| Dimension | 480mm×577mm×252mm(W×D×H) |
| Output Impedance | 48 |
| Tube | 845×2300B×26SN7×36SL7×2 |
| Power Output | 22W+22W |
| THD | 0.3%(1W/1kHz) |
| Power Consumption | <380w |
| Input Sensitivity | 300mV (Integrated) 1000mV (Pre-IN) |
| Net Weight | 51kg |
| Input Impedance | 100K |
| Input Terminals | one set for BALANCE, two sets for RCA, one set for PRE-IN |
