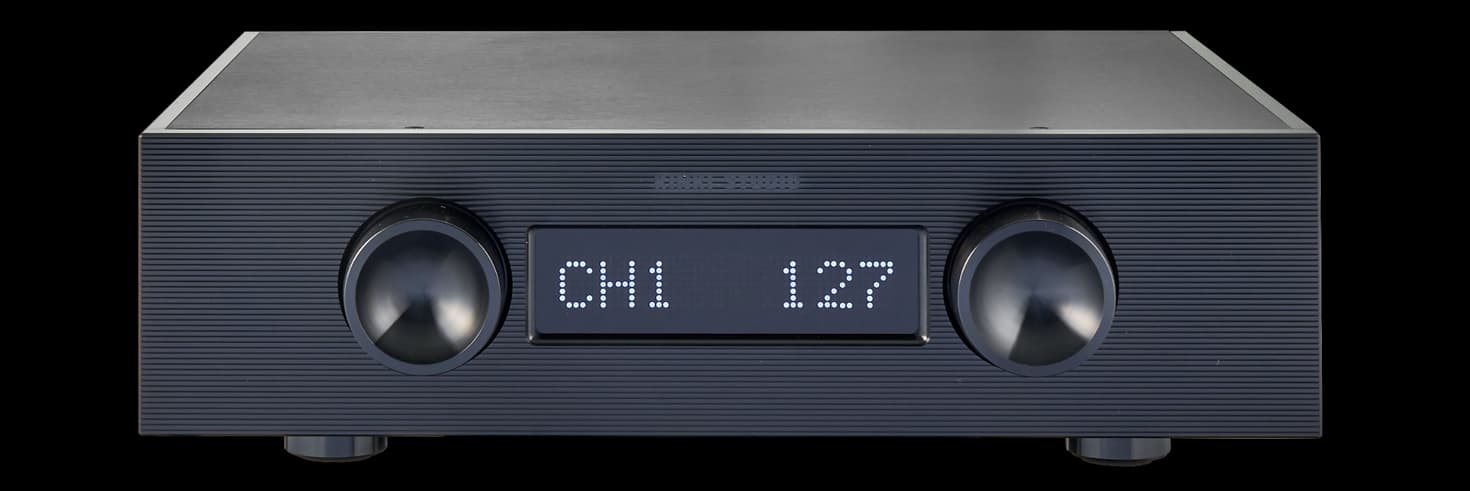

he HADES 15th is a fully discrete, true balanced, class-A line stage.
It uses advanced microprocessor-controlled relay-based 60-step attenuators. The precision-matched through-hole resistor yielded perfect channel balance, delivering ultra-low distortion, low noise, neutral sound reproduction.
Technical Highlights
- Pure Class-A, True Balanced, Fully Discrete Line Stage
- 60 Steps Microprocessor Controlled Relay Based Stepped Attenuator
- Precision Matched Through-Hole High Precision Resistors & Components with Perfect Channel Balance And Low Distortion
- Remote Controlled
Input
- IN1 - XLR1
- IN2 - XLR2
- IN3 - RCA
Output
- RCA at 2.0Vrms
- XLR at 4.0Vrms
Frequency Response: 10-80kHz（-0.3dB）
THD+N: 0.00045%
S/N Ratio: 122dB
Dynamic Range: >121dB
Stereo Crosstalk: -110dB
Input Impedance: 60k Ω
Output Impedance: 200 Ω
Gain: Unity Gain 0dB
AC Power Requirement: 110/240VAC, 50/60Hz
Power Consumption: 1W (Idle), 20W (Operational)
Dimension: 322W x 392D x 74H mm (Feet +18mm)
Weight: 9 Kg
Color: Black/Silver
Warranty: 36 Months
