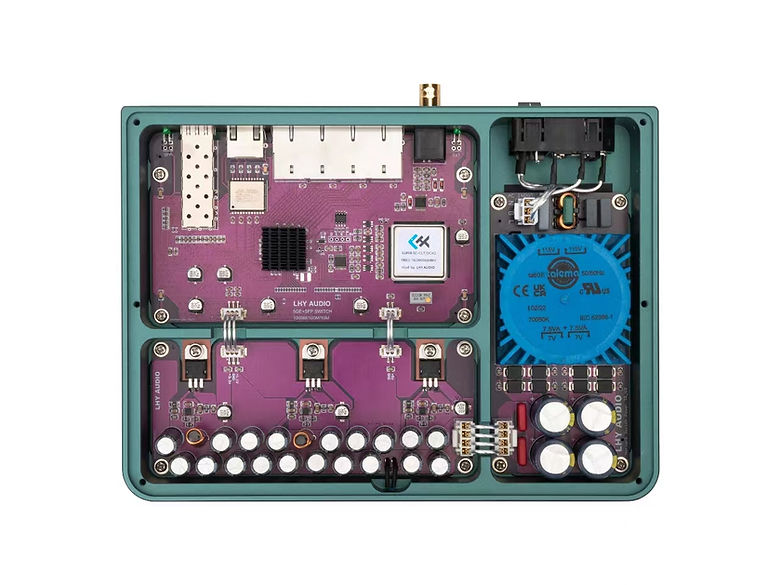

LHY SW-6
Technical Highlight:
- LHY Gigabit Ethernet Switch
- 4 x Gigabit Ports RJ-45, 1 x Isolated Gigabit Port RJ-45, 1 x SFP Port
- 10MHz OCXO Master Clock In
- CNC Aluminum Block Chassis [Gun Metal Grey/Green]
- AC Incoming: High Quality IEC with Fuse & Switch
- AC Noise Filter: UK RIFA RFI Suppression Caps & Noise Filter
- AC Transformer: High Quality Encapsulated Talema
- High Speed Rectifier
- High Endurance Reservoir Caps
- Phillips 1% Precision Resistors
- Multistage DC/DC uV-class linear power supply with noise close to 0 (lab measurable noise in the range of uV)
- Integrated Aluminium Heat-sink Chassis
OCXO
- Reclock Ethernet Data Stream by High-quality SC-CUT Oven Controlled Crystal Oscillator with ultra-low noise PLL circuitry
- Noticeable improvement in Clocking precision and lower jitters
- Master Clock 10MHz Input via BNC connectors
Master Clock In
- Input: Sinewave/Squarewave, 50Ω
What’s in the package:
1. LHY SW-6 Network Switch
2. Power cord
Dimension: 240W x 50H x 175D (mm)
Weight: 2.05kg
