LHY FMCOptical Galvanic Network Isolator RJ45 Ethernet OCXO Black
The LHY FMC galvanic network isolator optimizes your audio system's Ethernet LAN connection. It converts the network signal into an optical signal via its SFP port, and outputs it via its galvanically isolated RJ45 port. This eliminates any noise in the signal. In addition, it features a 10MHz OCXO clock for reclocking the signal, considerably reducing jitter. DATA transfer speeds reach 1000/100/10Mbps.

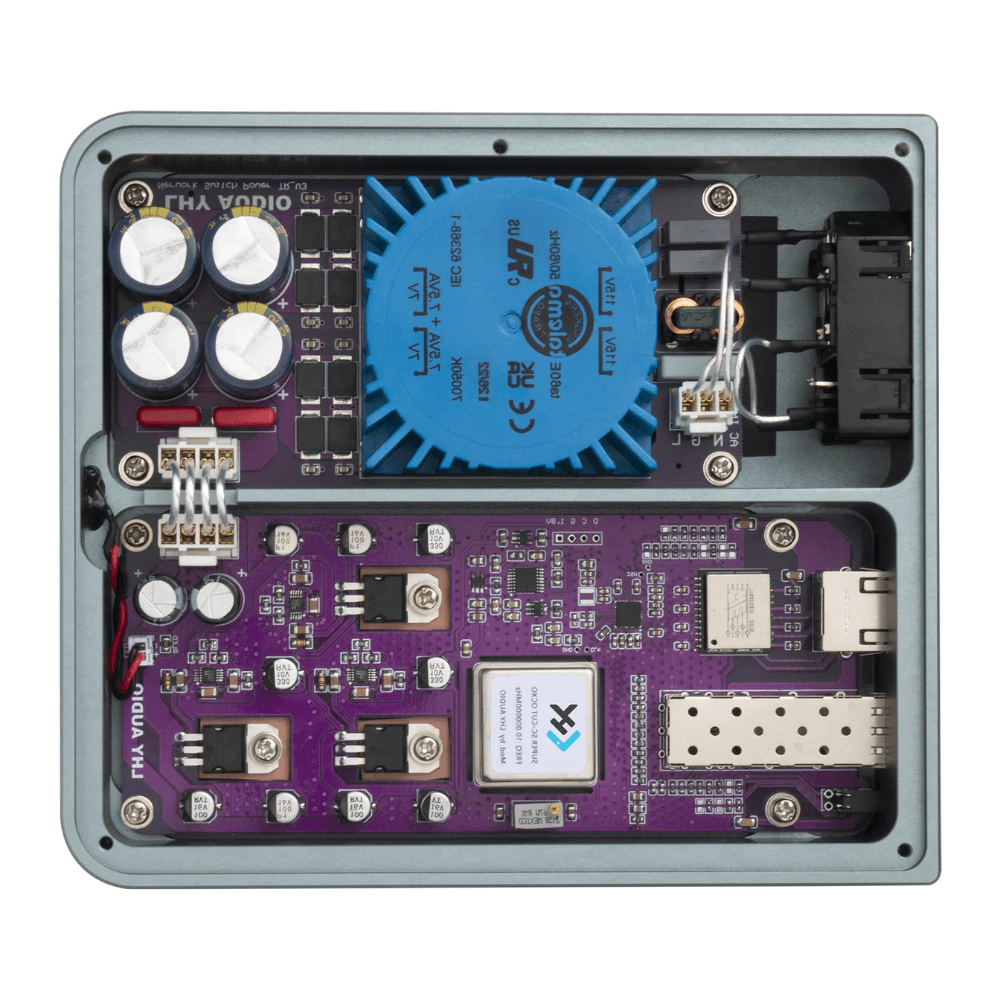

All the components used in this device are of the highest quality. On the mains supply side, an AC EMI/RFI filter and a Talema transformer coupled with high-quality capacitors deliver a clean current to the entire LHY FMC. On the optical conversion side, 3 LDO LT3042 voltage regulators power the LHY FMC's clock and main board.

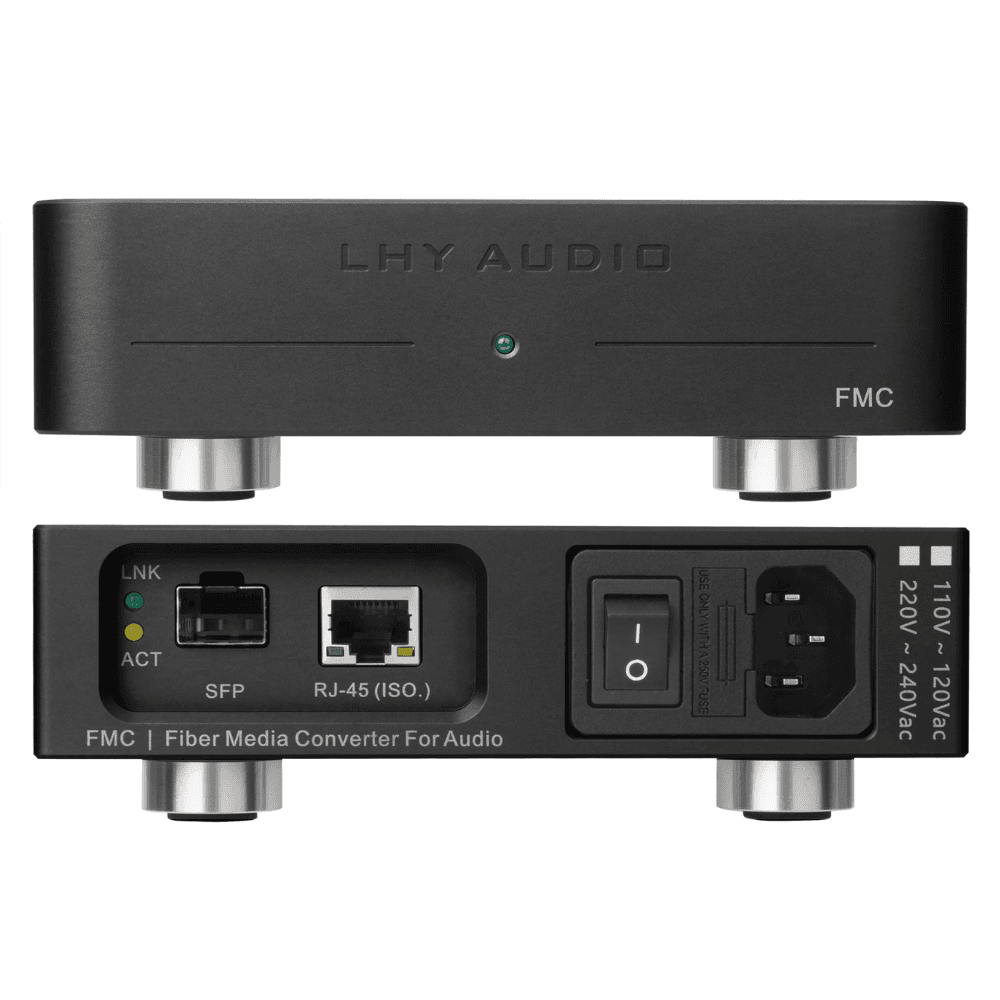

LHY FMC overview
| 1 | LED operating indicators |
| 2 | SFP port |
| 3 | RJ45 port |
| 4 | Power on/off switch |
| 5 | Fuse slot |
| 6 | IEC power supply |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Network isolator |
| Interface | 1x SFP port 1x Isolated RJ45 port |
| Supported transmission speeds | 1000/100/10Mbps |
| Voltage regulators | 3x LT3042+PNP |
| Clock | OCXO 10MHz |
| LED indicators | ACT: SPF connection LNK : DATA transmission |
| General | |
|---|---|
| Power supply | 220/240V AC |
| Fuse | 5x20mm (10W) |
| Dimensions | 150 x 175 x 50mm |
| Weight | 1.5kg |
| Color | Black or Silver |
| Package | 1x LHY FMC 1x Power supply cable |
