The Koru is an exceptional high-end reference phono stage from Plinius.
The acclaimed Plinius Koru Phono stage provides extraordinary value for money, with top tier acoustic performance capable of supporting the very best cartridges.

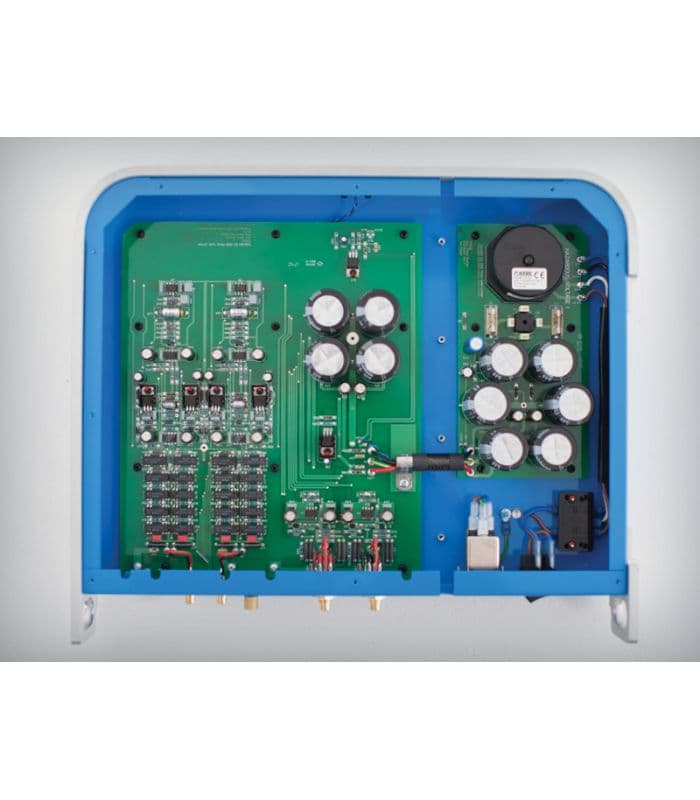

The Koru phono preamplifier is presented in the Ross Stevens inspired curved chassis, with a slight twist. The chassis is actually two-in-one, allowing physical separation of the power supply from the amplification circuitry.
The power supply boasts a virtual battery approach with over 100,000 micro Farads of capacitance and very sophisticated 2 stage regulation. This ensures the lowest impedance and consequently extreme accuracy of power delivery to the amplification stages.
The amplification and equalisation uses the latest components ensuring accuracy and longevity. Low output moving coil cartridges as well as higher output moving magnet types can be used and there is a full range of user adjustments available on the rear panel.
Both Single Ended and Balanced Output signals are catered for and with passive high frequency and active low frequency equalisation the Koru Phono Preamplifier will maintain stability and finesse no matter what type of music you enjoy.
Handling the original analogue signal from the vinyl with modern electronics components and layout techniques is a satisfying way to mix the old and new technology for a listening session with your favourite artists.
The Koru is much acclaimed, including Editor’s Choice awards from The Absolute Sound.
-
Specification:
- Input: RCA Unbalanced
- Gain: User adjustable, 50dB, 56dB, 60dB, 66dB
- Load: User adjustable, 47k ohms, 22k ohms, 1k ohms, 470 ohms, 220 ohms, 100 ohms, 47 ohms, 22 ohms
- Input Capacitance: User adjustable, 100pF, 570pF
- Frequency Response: 20Hz to 20kHz /–0.2dB within RIAA spec
- Signal to Noise Ratio: –80dB wrt 5 mV input, A weighted
- Distortion: >0.01% THD at all levels below clipping

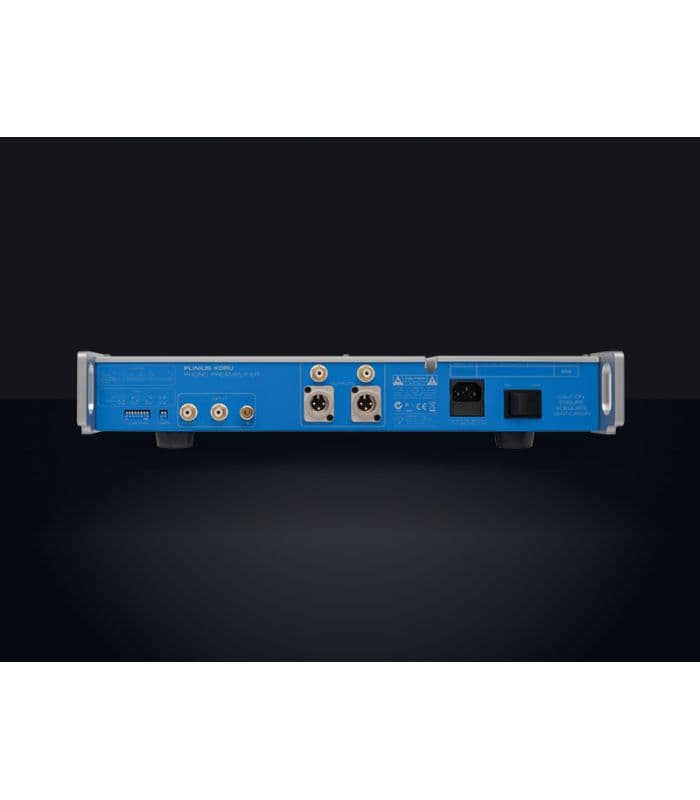

- Outputs: RCA Unbalanced, XLR Balanced
- Power/Current Consumption:
- 10VA (maximum)
- 0.03A (7W) Idle/Standby
- Height: 80mm (3.5″)
- Width: 450mm (17.75″)
- Depth: 400mm (15.75″)
- Weight: 5.5kg (12lbs)
